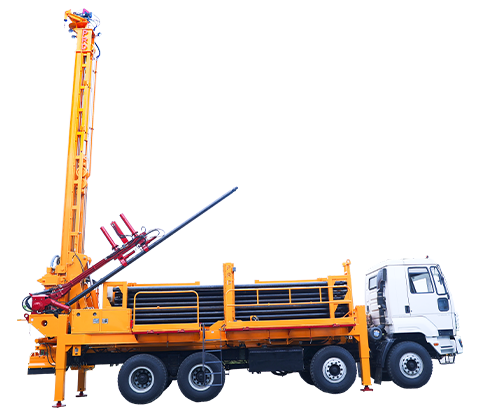

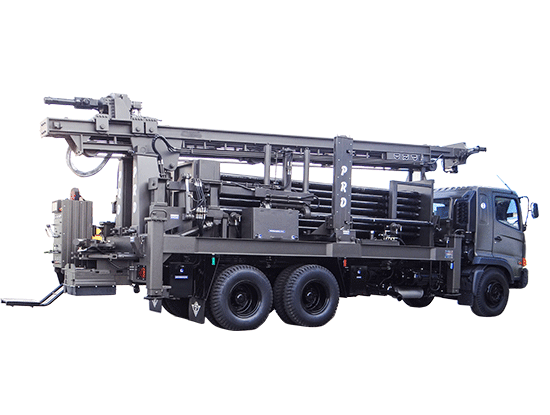

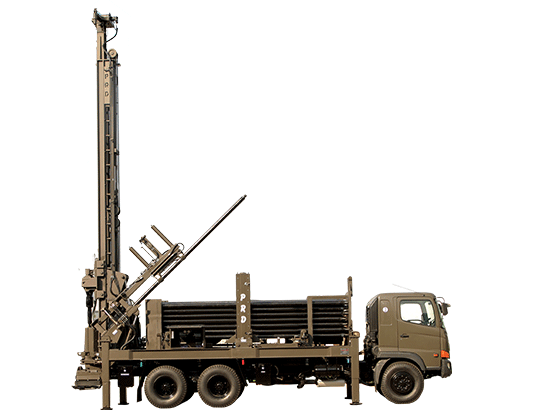

Product Description
The deep hole drilling rig delivers a formidable pull-up force of 14,100 kg, capable of drilling diameters from 6 to 14 up to a depth of 450 meters. Designed for demanding tasks, it guarantees exceptional performance and precision, handling even the toughest drilling challenges with advanced technology and robust construction. Ideal for extensive projects, this rig combines strength and innovation for unmatched efficiency and reliability.
| Application | Domestic Water Wells |
|---|---|
| Drilling Method | DTH / Rotary Drilling |
| Flushing Medium | Air / Water |
| Drilling Depth | 450 meters |
| Hole Diameter | 165 - 356 mm (6 ½” - 14") |
| Rod Handling Method | Auto rod handler |
| Rotary Head Type | Top drive rotary head |
| Rotary Head Travel | 6130 mm |
| Rod Break out method | Hydraulic operated v type jaw breakout system |
| Engine - Model | Truck Engine |
| Hydraulic system | Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 600 litres |
| Mounting | Truck / Crawler / Skid |
| Optional features | PRD ICE Package Winch on mast : 2 ton Hammer opener Mine safety features |
| Pull up force | 14100 kgf |
|---|---|
| Pull down force | 8600 kgf |
| Pull up speed | 30 m/min |
| Pull down Speed | 50 m/min |
| Mast overall length | 7750 mm |
| Rod handling length | 5 m |
| Control panel | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. |
| Torque Speed | Torque: 4500 Nm Speed: 0 - 100 rpm |
| Centraliser Opening | 16" (406 mm ) |
| Air Compressor | ELGI / Atlas Copco / Doosan Compressor capacity 1100 cfm-300 psi (21 bar) 1200 cfm-330 psi (24 bar) To be mounted on a separate carrier |
| Mud Pump | Option 1: Hydraulic driven Centrifugal Mud Pump Option 2 : Hydraulic operated PRD 150 Mud Pump (6" x 6") |
| Truck Option | MAN 6x4 / 6x6 HINO 6x4 / 6x6 SINOTRUK Howo 6x4 / 6x6 Min 25 - 30 ton GVW Truck |
| Safety features | Walkways and Handrails Rod fall protection system |
| Platform structure | Heavy I and C section welded steel structure covered with 5mm chequered plate |

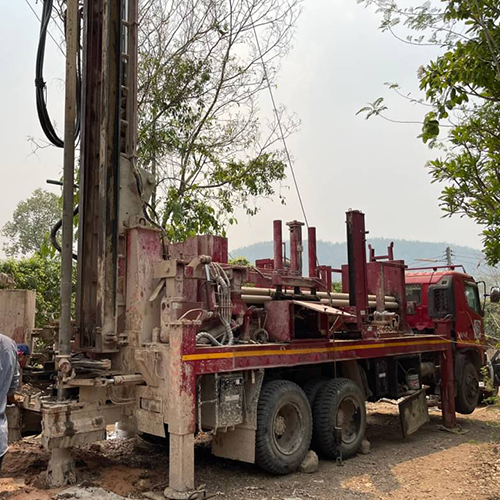

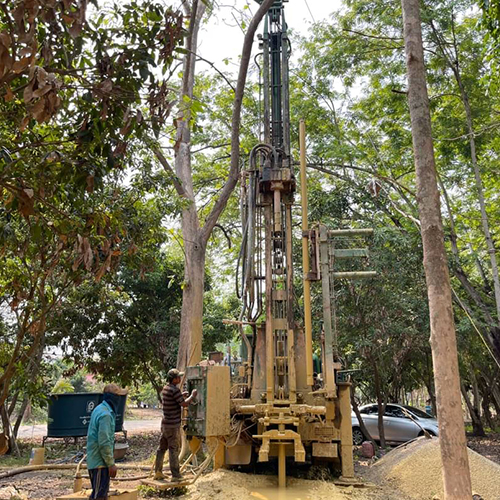

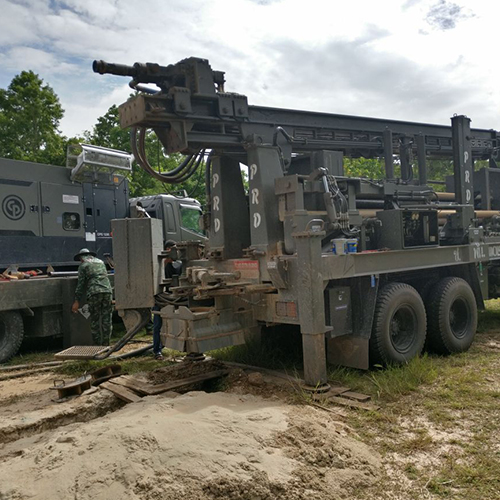

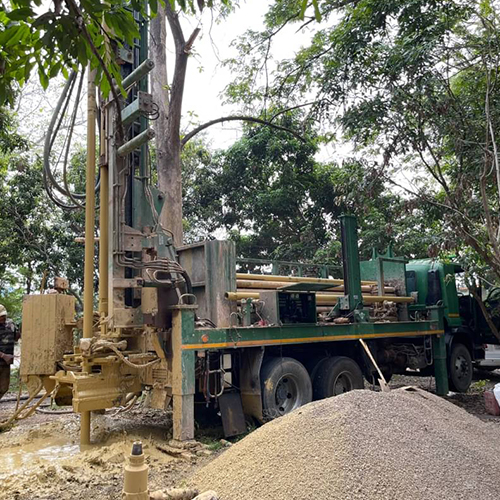

Site Application Images
