Product Description

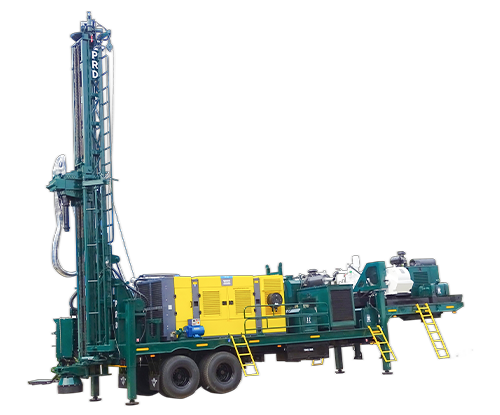

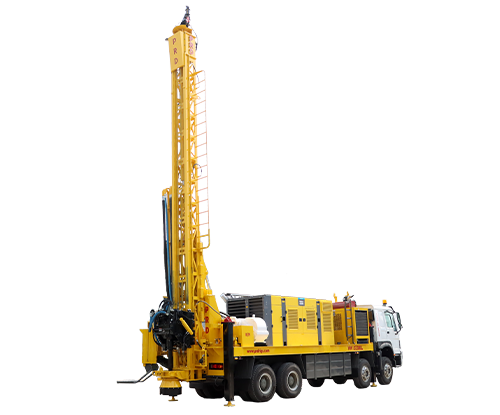

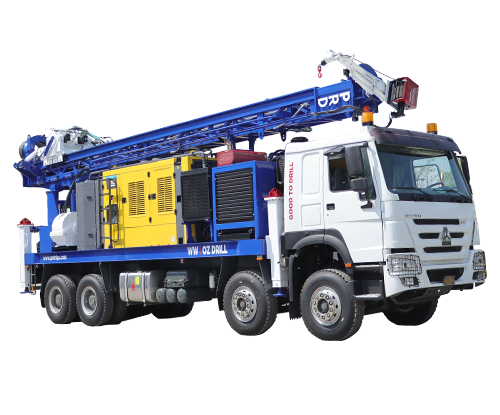

The PRD OZ Drill Rig is a powerful solution for deep hole drilling, with a pull-up force of 25,800 kg and a drilling range of 6.5 to 20 inches. Ideal for cathodic protection, dewatering, monitoring, and irrigation, it excels with advanced DTH and Rotary drilling tools. Powered by a 260 hp deck engine, the rig's hydraulic system supports a sturdy mast design operated by 22 hydraulic cylinders and features an 850-liter hydraulic tank and comprehensive control panel. Optional attachments like a winch, tilting rotary head, and real-time fuel monitoring system customize the rig to your needs. The PRD OZ Drill Rig's cutting-edge drilling tools enhance its capability, ensuring efficient and reliable performance for diverse drilling tasks.
| Application | Cathodic Protection De-watering holes Monitoring holes Irrigation |
|---|---|
| Drilling Method | DTH / Rotary Drilling |
| Flushing Medium | Air / Water |
| Drilling Depth | 750 meters |
| Hole Diameter | 165 - 508 mm (6 ½” - 20") |
| Rod Handling Method | Option 1 - Auto rod handler Option 2 - RED 180 Option 3 - EZ Rod handling Option 4 - Single rod chnager |
| Rotary Head Type | Top drive rotary head |
| Rotary Head Travel | 7000 mm |
| Rod Break out method | Hydraulic operated breakout system |
| Engine - Model | Suitable Deck Engine - 260 hp |
| Hydraulic system | Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 850 litres |
| Mounting | Truck / Crawler / Skid / Trailer |
| Pull up force | 25800 kgf |
|---|---|
| Pull down force | 17700 kgf |
| Pull up speed | 46 m/min |
| Pull down Speed | 67 m/min |
| Mast overall length | 10500 mm |
| Rod handling length | 5 m / 6 m |
| Control panel | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. |
| Torque Speed | Torque: 9000 Nm Speed: 0 - 100 rpm |
| Centraliser Opening | Centralizer Opening: 16" (406 mm ) Expandable: 21” (533 mm) Split type |
| Air Compressor | ELGI / Atlas Copco / Doosan Compressor capacity 1200 cfm - 330 psi (24 bar) 1500 cfm - 400 psi (27 bar) 1270 cfm - 365 psi (25 bar) / 425 psi (29 bar) |
| Mud Pump | Option 1: Hydraulic / Engine operated PRD 200 Mud Pump (8" x 6") Option 2 : Hydraulic operated PRD 250 Mud Pump (10" x 7") |
| Truck Option | SINOTRUK Howo 6x6 / 6x4 / 8x4 MAN 6x6 / 6x4 Min 25 ton GVW Truck |
| Safety features | Walkways and Handrails Rod fall protection system |
| Optional features specifications | PRD ICE package Winch on platform : 5 ton Tilting rotary head |
| Platform structure | Heavy I and C section welded steel structure covered with 5mm chequered plate |

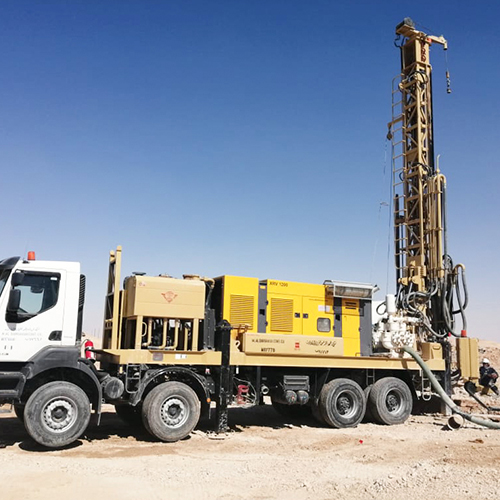

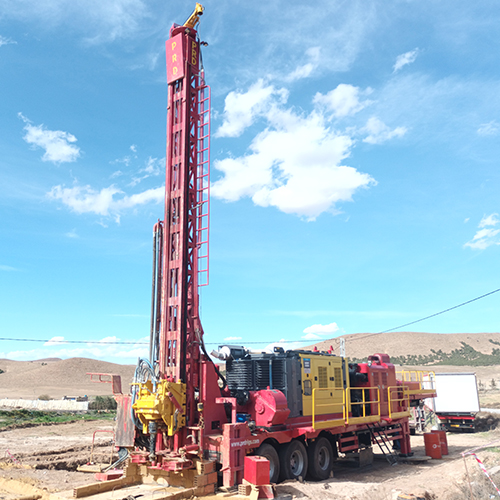

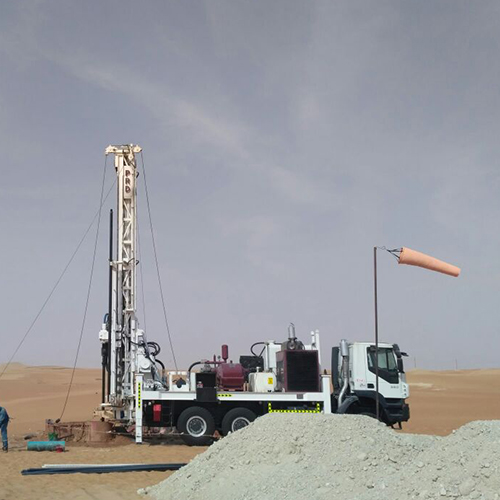

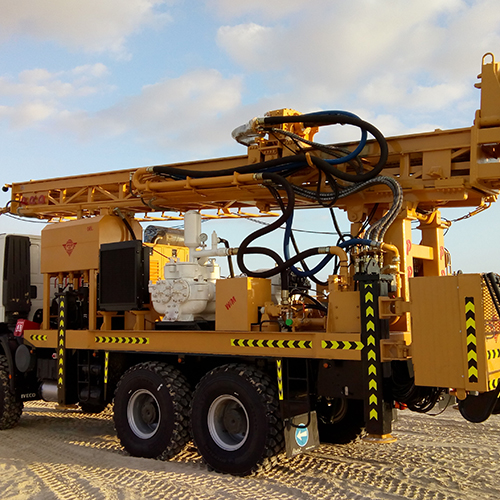

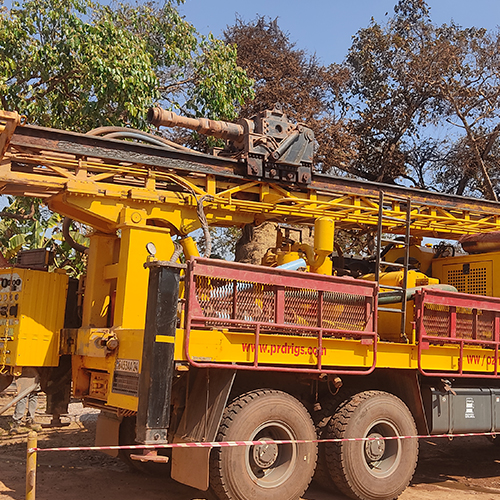

Site Application Images
